| SPECIFICATION | DAF-250Ex | DAF-225Ex | DAF-225E | DAF-180E | DAF-180D | DAF-150D |
| Approximate Min. Carrier Power |
250 HP (190 kW) | 200 HP (150 kW) | 175 HP (130 kW) | 125 HP (95 kW) | 85 HP (65 kW) | 75 HP (60 kW) |
| Cutting Width | 99" (251 cm) | 85" (216 cm) | 88" (223cm) | 74" (188 cm) | 74" (188 cm) | 59" (150 cm) |
| Cutting Distance from Ground Level |
.4" (1 cm) | .4" (1 cm) | .4" (1 cm) | .8" (2 cm) | .8" (2 cm) | .8" (2 cm) |
| Number of Blades on Rotor | 35 | 31 | 31 | 27 | 27 | 21 |
| Optimal Target Material Diameter |
24" (61 cm) | 24" (61 cm) | 15" (38 cm) | 10" (25 cm) | 8" (20 cm) | 6" (15 cm) |
| Exterior Width | 103" (261 cm) | 102" (259 cm) | 100" (254 cm) | 88" (223 cm) | 87" (221 cm) | 72" (183 cm) |
| Exterior Height (with Pushbar) | 61" (155 cm) | 58" (147 cm) | 55" (140 cm) | 55" (139 cm) | 58" (147 cm) | 59" (150 cm) |
| Exterior Height (without Pushbar) |
38" (97 cm) | 38" (97 cm) | 38" (97 cm) | 37" (94 cm) | 44" (112 cm) | 26" (66 cm) |
| Exterior Depth (with Pushbar) | 50" (127 cm) | 51" (130 cm) | 55" (140 cm) | 45" (114 cm) | 51" (130 cm) | 48" (122 cm) |
| Exterior Depth (without Pushbar) |
33" (84 cm) | 33" (84 cm) | 33" (84 cm) | 27" (69 cm) | 31" (79 cm) | 29" (74 cm) |
| Rotor Diameter | 20" (51 cm) | 20" (51 cm) | 20" (51 cm) | 20" (51 cm) | 18" (46 cm) | 18" (46 cm) |
| Weight, typical (estimated) | 5400 lb (2449 kg) | 5200 lb (2359 kg) | 4700 lb (2132 kg) | 3300 lb (1497 kg) | 3200 lb (1452 kg) | 2300 lb (1043 kg) |
| HYDRAULIC SYSTEM | DAF-250Ex | DAF-225Ex | DAF-225E | DAF-180E | DAF-180D | DAF-150D |
| Variable Displacement Axial Piston Motor |
2 | 2 | 1 | 1 | 1 | 1 |
| Max. Cyl. | 115 | 115 | 170 | 170 | 115 | 85 |
| Max. Motor Torque (T max at Vg max), lbs-ft |
502 | 502 | 907 | 502 | 502 | 450 |
| Nm | 681 | 681 | 1230 | 681 | 681 | 610 |
| Required Continuous Flow* | 80 gal/min (303 L/min) |
75 gal/min (284 L/min) |
60 gal/min (227 L/min) |
50 gal/min (189 L/min) |
35 gal/min (132 L/min) |
23 gal/min (87 L/min) |
| Operating Pressure* | 6000 psi (414 bar) | 6000 psi (414 bar) | 6000 psi (414 bar) | 6000 psi (414 bar) | 5000 psi (345bar) | 5000 psi (345bar) |
| Rotating Speed | 2250 r/min | 2250 r/min | 2350 r/min | 2400 r/min | 2550 r/min | 2600 r/min |
| Pressure Line I.D. | 1.25" (#20) | 1.25" (#20) | 1" (#16) | 1" (#16) | 1" (#16) | .75" (#12) |
| Return Line I.D. | 1.25" (#20) | 1.25" (#20) | 1" (#16) | 1" (#16) | 1" (#16) | .75" (#12) |
| Drain Line | 1" (#16) | 1" (#16) | .75" (#12) | .675" (#10) | .675" (#10) | .625" (#10) |
| FEATURES | DAF-250Ex | DAF-225Ex | DAF-225E | DAF-180E | DAF-180D | DAF-150D |

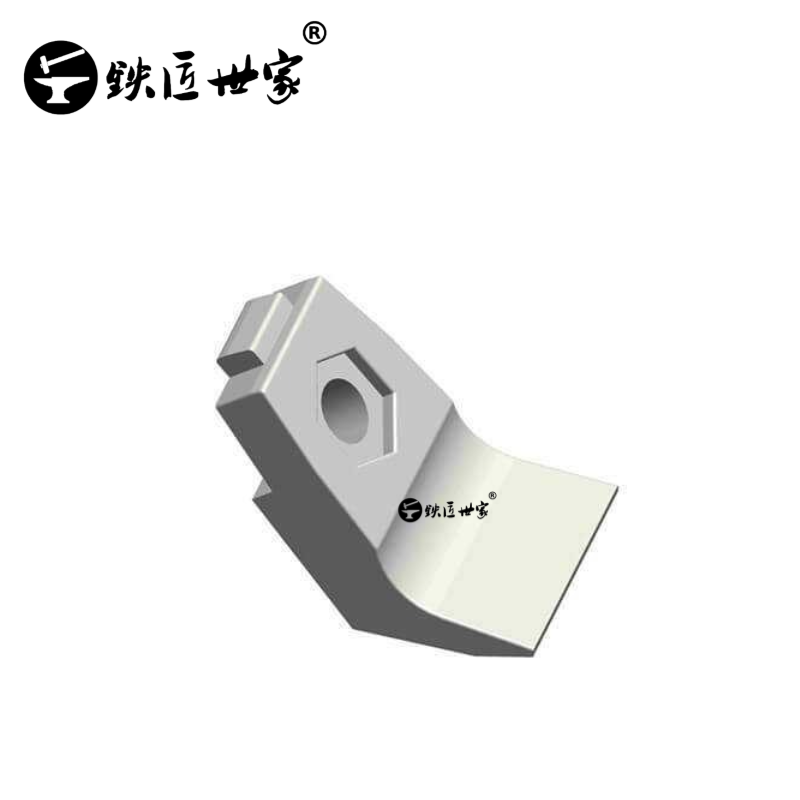

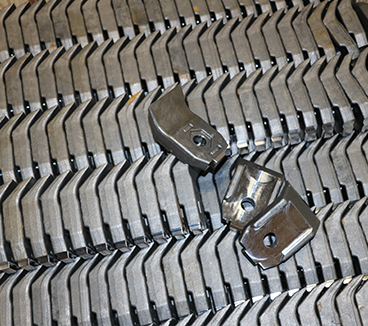

| Sharpenable Bolt-on Forged Blades |
Standard | Standard | Standard | Standard | Standard | Standard |
| Hydraulic Pushbar | X | X | X | X | X | X |
| Bolt-in Wear Liner | X | X | X | X | X | |
| |
